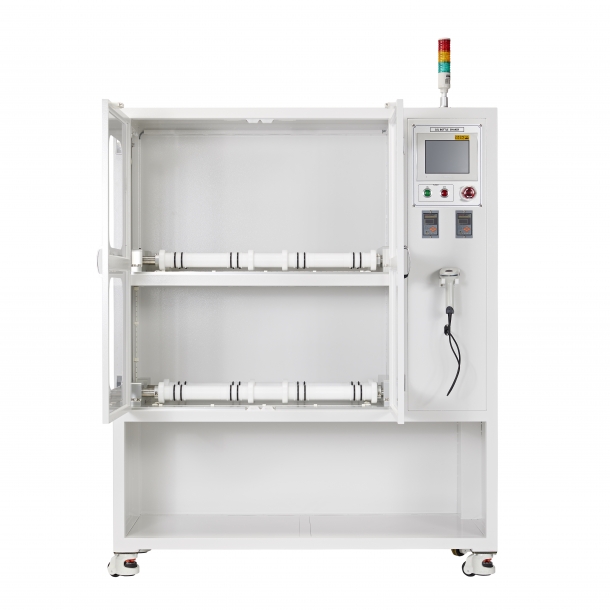

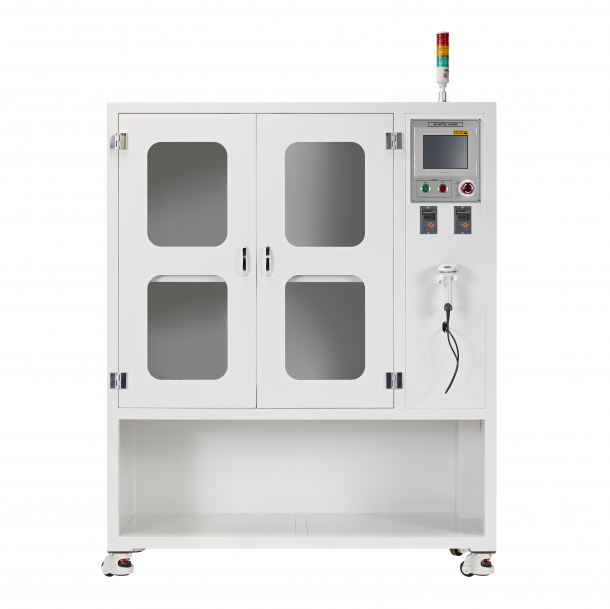

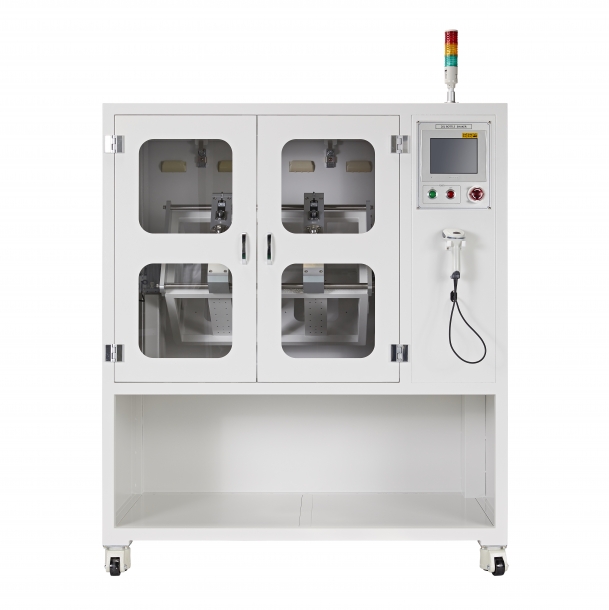

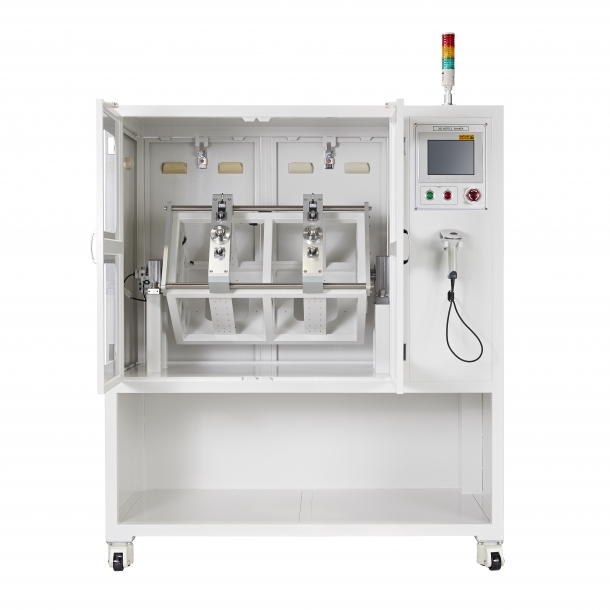

Bottle Shaker

Bottle Shaker

Equipment for prevention of slurry sedimentation for maintenance of slurry quality supplied to CMP procedure

Key features

•Capacity : 10L 4ea, 20L 2ea
•Prevention of Human Error : Barcode Reader
                                                  Interlock (Top clamp, Front clamp, Door interlock, Leak Sensor)
•Operation : 10L – 360° horizontal rotation
                     20L - 360° degrees vertical rotation, set rotation speed and timer
•Features : Rotation speed and timer settings
                   Empty Mode
                   Alarm & History check
•BS10, BS10BN, BS10BNTL (10L) 4 Bottle run simultaneously and can be controlled respectively
•BS20, BS20BN, BS20BNTL (20L) 2 Bottle simultaneously and can be controlled respectively

Dimensions(mm, exclusion of the height of wheel and Tower Lamp)

테이블
SIZE W D H
10L 1,370    500 1,540
20L 1,100   700 1,500
테이블
SIZE BOTTLE SIZE CAPACITY
10L Φ210*395mm  10Kg
20L Φ270*270*395mm  20Kg
