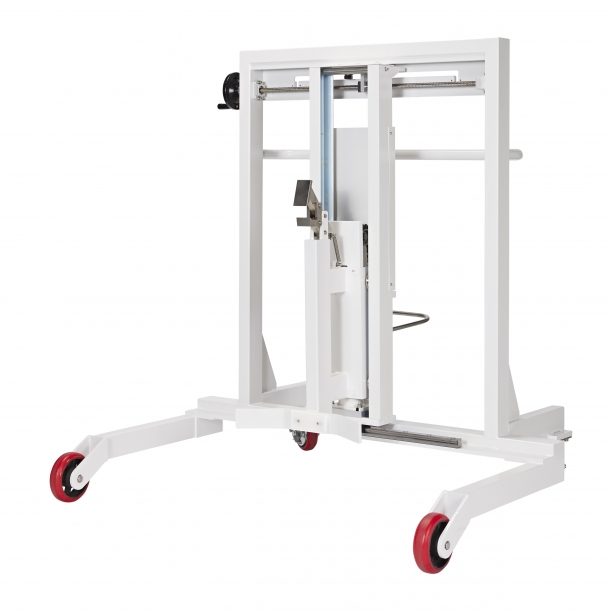

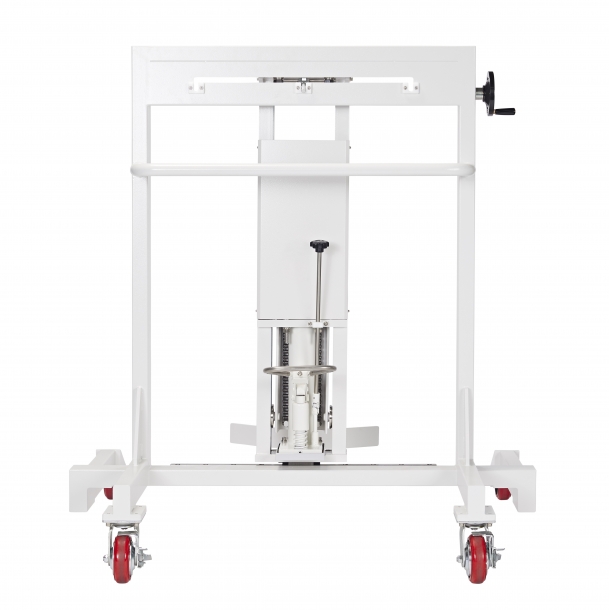

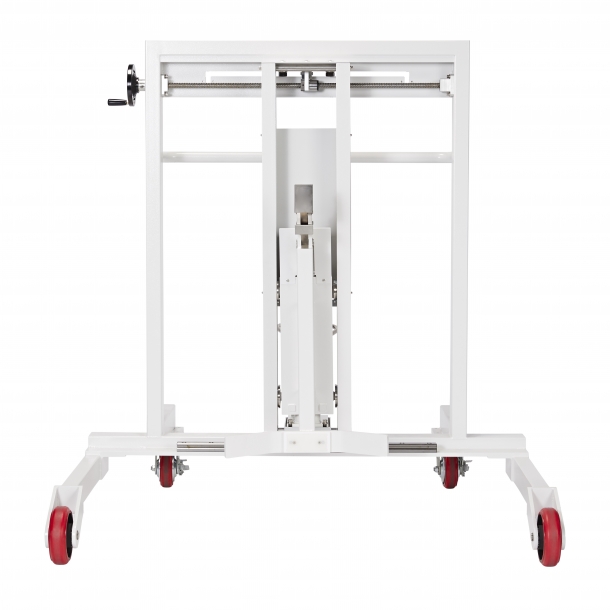

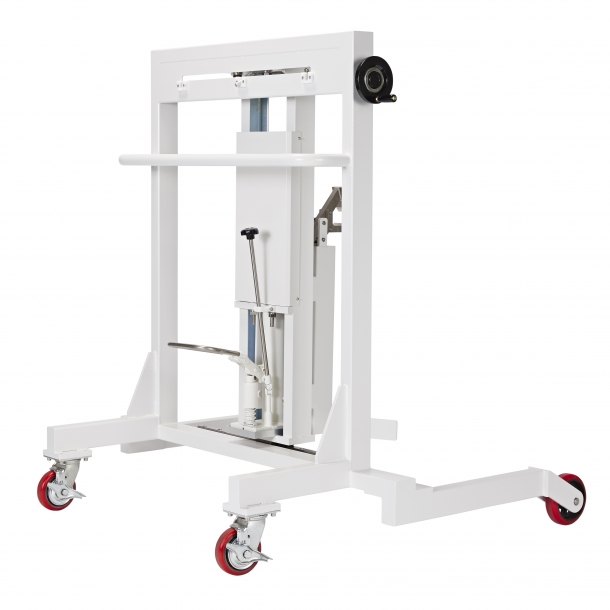

Drum Picker
Drum Picker
Slurry / Chemical Drum Transportation and Loading
Key features
•Capacity : 200L Drum•Features : Able to move the Drum up(down), left(right) before transporting it
Drum's easy-to-carry operation improves convenience and efficiency
Front entry : Not required side workspace
Not required extra work when transporting the inner Drum
Dimensions
| SIZE | W | D | H |
|---|---|---|---|
| Drum Picker | 1,330 | 1,155 | 1,290 |
| DRUM SIZE | CAPACITY | LEFT HEIGHT |
|---|---|---|
| Φ 600*900mm | 250Kg | 350mm |
Names and manipulation method
① Handle Bar : Handle bar to move the Drum Picker
② Left to right transportation handle :
Handle for manipulation of Picker to the right and left
③ Foot Lever : Lever to lift the Drum after having grabbed it with Picker
④ Hooker : Device that holds onto the Drum for
transportation
⑤ Drum Guide : Guide that holds onto the lateral side of Drum at the time of transportation
